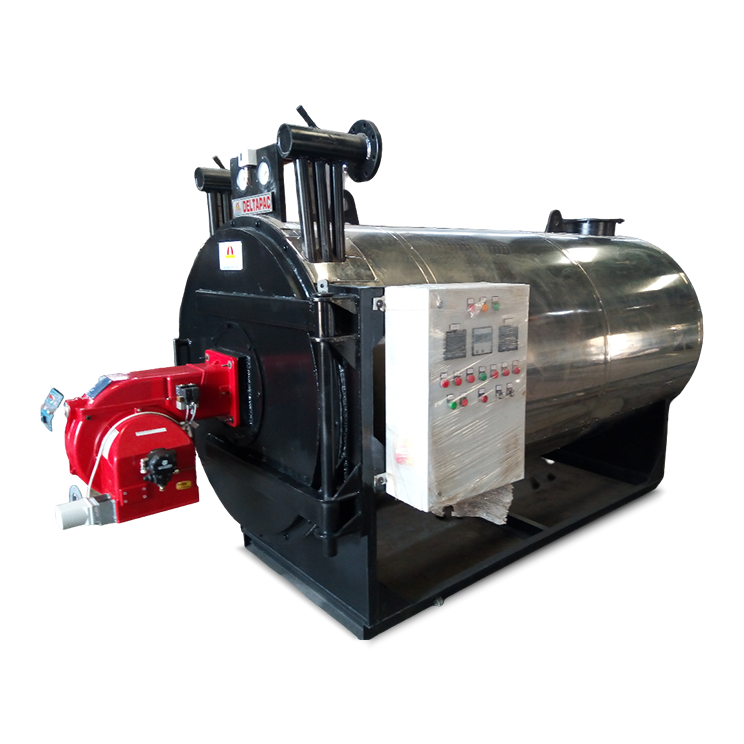

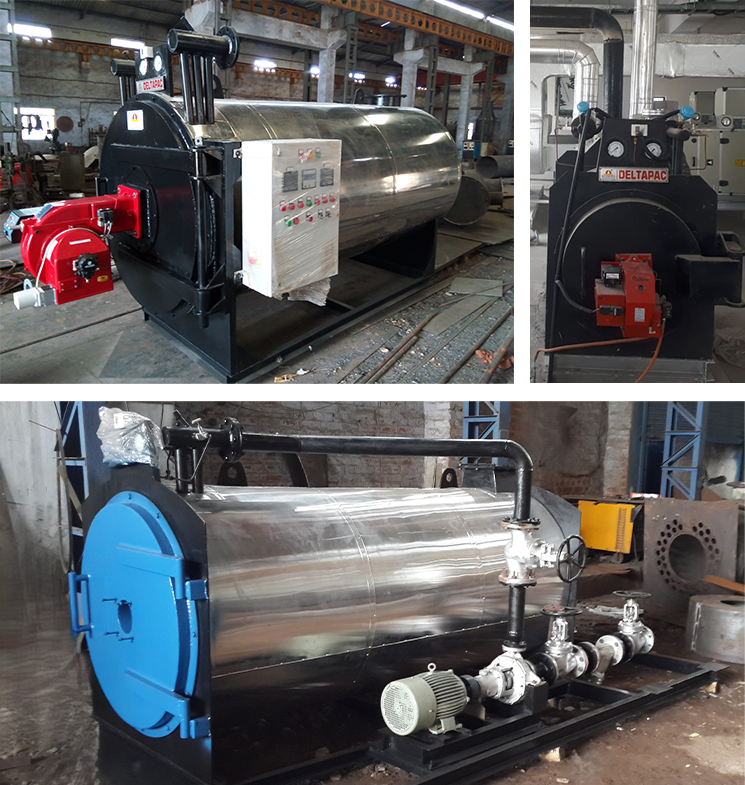

The DELTAPAC series, horizontal three pass thermic fluid/thermal oil heater is designed for maximum efficiency using a variety of liquid and gaseous fuels. It is designed with fuel flexibility in mind and can fire a range of heavy oils, light oils and gases. It allows high process temperatures with low operating pressures.
Operating Range
- Capacity – 0.1 million kcal/hr to 10.0 million kcal/hr
- Fuel- Heavy oils, light oils and gases
- Temperature - 300℃
| Specification | Unit | DP-10 | DP-20 | DP-30 | DP-40 | DP-50 | DP-60 | DP-80 | DP-100 | DP-150 | DP-200 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| General | |||||||||||
| Maximum heat output | M. Kcal/hr | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.8 | 1.0 | 1.5 | 2.0 |
| maximum working temperature | °C | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 |
| thermic fluid heater Rise temperature | °C | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Hot Oil Inlet/ Outlet | MM | 40 | 50 | 80 | 80 | 100 | 100 | 125 | 150 | 150 | 200 |
| Heating surface area of heater | M² | 6 | 12 | 18 | 24 | 30 | 36 | 54 | 60 | 90 | 120 |
| oil holding capacity of heater | liter | 30 | 78 | 118 | 223 | 278 | 333 | 666 | 741 | 1398 | 1863 |
| Burner | Pressurejet Monoblock Burner | ||||||||||
| Type of Fuel | Fuel | DIESEL, LPG, NG., PNG, FO,LDO | |||||||||
| Boilers Efficiency | |||||||||||
| On Gas | % | 90 +/-2 | 90 +/-2 | 90 +/-2 | 90 +/-2 | 90 +/-2 | 90 +/-2 | 90 +/-2 | 90 +/-2 | 90 +/-2 | 90 +/-2 |
| On Oil | % | 88 +/-2 | 88 +/-2 | 88 +/-2 | 88 +/-2 | 88 +/-2 | 88 +/-2 | 88 +/-2 | 88 +/-2 | 88 +/-2 | 88 +/-2 |
| Fuel Consumption | |||||||||||
| Diesel (10500) | Kg/hr | 11 | 22 | 32 | 43 | 54 | 65 | 87 | 108 | 162 | 216 |
| Furnace Oil (9600) | Kg/hr | 12 | 24 | 36 | 47 | 59 | 71 | 95 | 118 | 178 | 237 |
| LDO (10200) | Kg/hr | 11 | 22 | 33 | 45 | 56 | 67 | 89 | 111 | 167 | 223 |
| LPG (11000) | Kg/hr | 10 | 20 | 30 | 40 | 51 | 61 | 81 | 101 | 152 | 202 |
| Natural gas(8900) | M³/hr | 12 | 25 | 37 | 50 | 62 | 75 | 100 | 125 | 187 | 250 |
| Electrical Load | |||||||||||
| Circulation Oil Pump | H.P. | 5.00 | 7.50 | 10.00 | 10.00 | 12.50 | 15.00 | 20.00 | 25.00 | 30.00 | 40.00 |
| Burner Blower (oil) | H.P. | 0.37 | 0.50 | 0.50 | 0.90 | 1.10 | 1.10 | 3.00 | 3.00 | 5.50 | 7.50 |
| Fuel Pump | H.P. | * | * | * | * | * | * | * | * | 1.10 | 1.10 |
| Total Electric Load | H.P. | 5.37 | 8.00 | 10.50 | 10.90 | 13.60 | 16.10 | 23.00 | 28.00 | 36.60 | 48.60 |
| NOTE: In view of constant endeavors to improve our products, we reserve the right to alter or change above specifications without prior notice. | |||||||||||
- GCV of diesel is 10500 Kcal/KG.
- GCV of furnace oil is
9600 Kcal/KG. - GCV of LDO is 10200Kcal/KG.
- GCV of LPG is 11000 Kcal/kg.
- GCV of natural gas is 8900 Kcal/kg.
