EDOPAC
EDOPAC

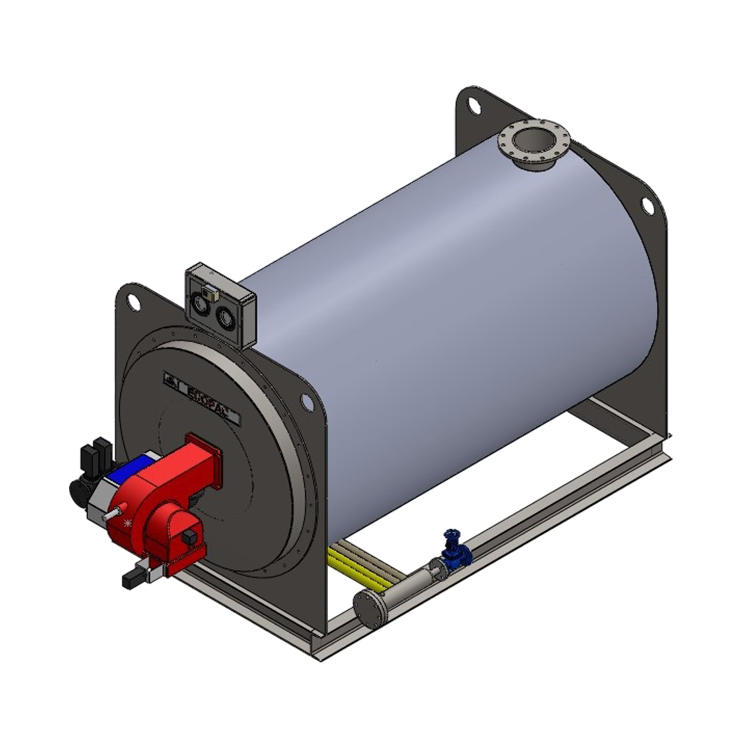

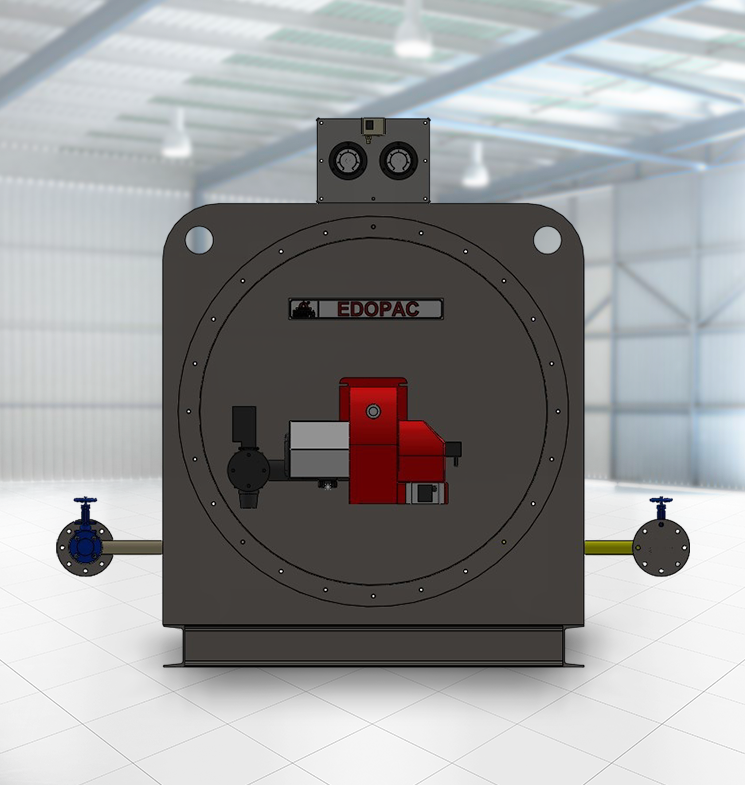

The EDOPAC-SERIES edible oil heater is an ideal heating solution for food factories, especially in fried food processing. It features a specially designed system with stainless steel and seamless steel pipe construction, achieving a high thermal efficiency of 96%. Capable of heating oil up to 350°C, it allows full oil drainage and prevents carbonization with a low heat release rate. The system operates fully automatically and supports multiple fuels, including natural gas, LPG, diesel, and heavy oil. Suitable for various frying systems like potato chip lines and batch fryers, its vertical design saves space and reduces both boiler room and fuel costs.
Operating Range
- Capacity – 4 lac Kcal/hr. to 6 lac Kcal/hr.
- Fuel- natural gas, LPG, diesel, and heavy oil
- Temperature- up to 350℃
| Specification | Unit | EDP-20 | EDP-30 | EDP-40 | EDP-50 | EDP-60 | EDP-80 | DP-100 |
|---|---|---|---|---|---|---|---|---|
| General | ||||||||
| Maximum heat output | M. Kcal/hr | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.8 | 1.0 |
| maximum working temperature | °C | 280 | 280 | 280 | 280 | 280 | 280 | 280 |
| Edible Oil heater Rise temperature | °C | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Hot Oil Inlet/ Outlet | MM | 50 | 65 | 80 | 80 | 100 | 100 | 100 |
| Heating surface area of heater | M² | 14 | 21 | 28 | 35 | 42 | 56 | 70 |
| Oil holding capacity of heater | liter | 74 | 112 | 260 | 305 | 365 | 632 | 790 |
| Burner | ||||||||
| Type of Fuel | Fuel | |||||||
| Boilers Efficiency | ||||||||
| On Gas | % | 90 +/-2 | 90 +/-2 | 90 +/-2 | 90 +/-2 | 90 +/-2 | 90 +/-2 | 90 +/-2 |
| On Oil | % | 88 +/-2 | 88 +/-2 | 88 +/-2 | 88 +/-2 | 88 +/-2 | 88 +/-2 | 88 +/-2 |
| Fuel Consumption | ||||||||
| Diesel (10500) | Kg/hr | 22 | 32 | 43 | 54 | 65 | 87 | 108 |
| Furnace Oil (9600) | Kg/hr | 24 | 36 | 47 | 59 | 71 | 95 | 118 |
| LDO (10200) | Kg/hr | 22 | 33 | 45 | 56 | 67 | 89 | 111 |
| LPG (11000) | Kg/hr | 20 | 30 | 40 | 51 | 61 | 81 | 101 |
| Natural gas(8900) | M³/hr | 25 | 37 | 50 | 62 | 75 | 100 | 125 |
| Electrical Load | ||||||||
| Circulation Oil Pump | H.P. | 3.75 | 5.62 | 7.50 | 9.37 | 9.37 | 11.25 | 15.00 |
| Burner Blower (oil) | H.P. | 0.50 | 0.50 | 0.90 | 1.10 | 1.10 | 3.00 | 3.00 |
| Fuel Pump | H.P. | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
| Total Electric Load | H.P. | 4.25 | 6.12 | 8.40 | 10.47 | 10.47 | 14.25 | 18.00 |
| NOTE: In view of constant endeavors to improve our products, we reserve the right to alter or change above specifications without prior notice. | ||||||||
- GCV of diesel is 10500 Kcal/KG.
- GCV of LDO is 10200 Kcal/KG.
- GCV of LPG is 11000Kcal/KG.
- GCV of natural gas is 8900 Kcal/KG.
- GCV of furnace oil is 9600Kcal/KG.
